- Electrically insulates odd-sized and odd-shaped splices on cables
- Pliable plastic molds are formed around splices
- Suitable for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig-ins
- Cable has a 7/8-in run and tap O.D.
3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit is specially designed to splice 1kV-rated cables. This versatile splice kit electrically insulates odd-sized and odd-shaped splices in underground applications.

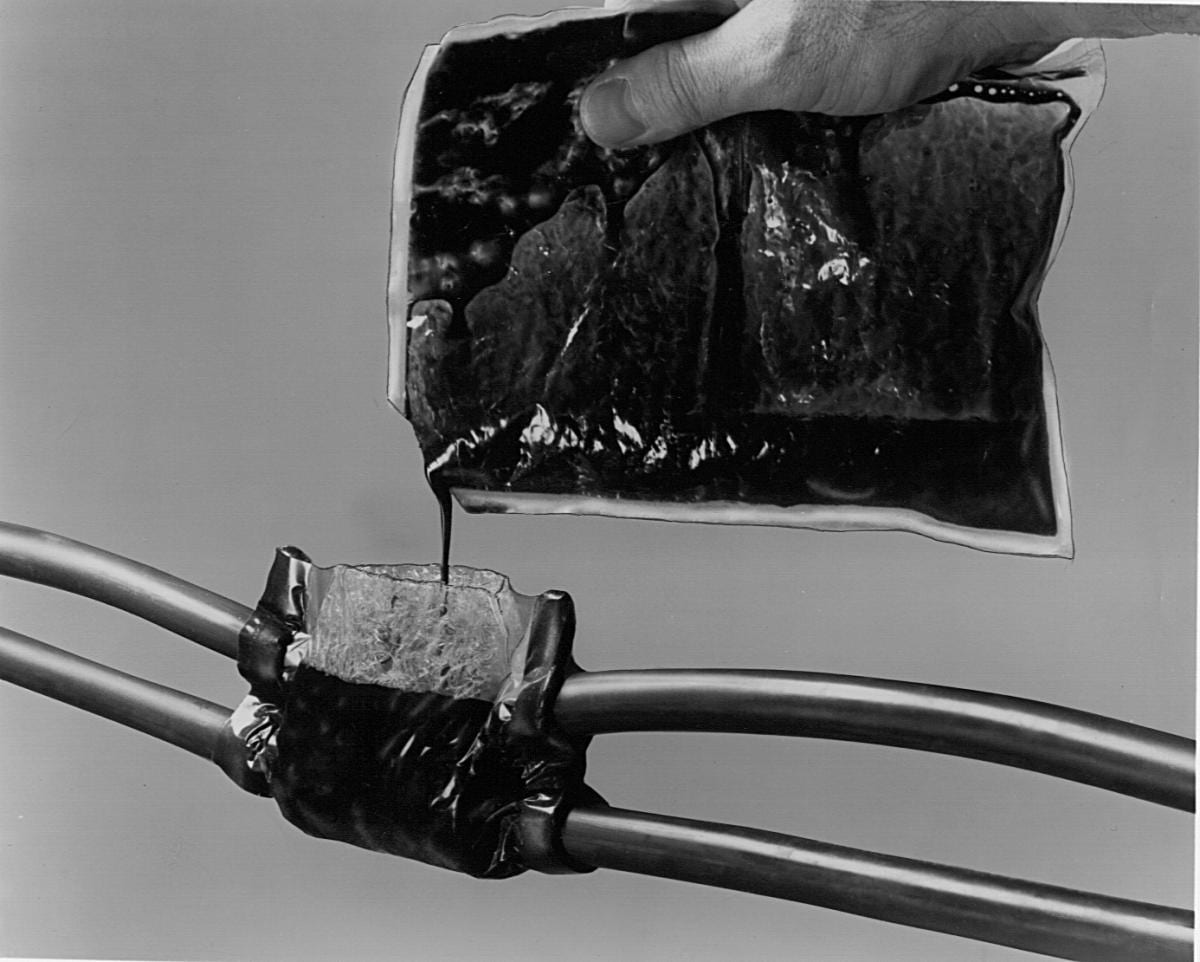

3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit includes a flexible film plastic mold, electrical insulating resin 2104, pressure-sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H-tap or C-tap compression connectors, it provides inline, wye, X, butt and dead-end splice configurations. It has a flexible film plastic mold with a built-in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig-ins. RoHS 2011/65/EU Compliant.
- Electrically insulates odd-sized and odd-shaped splices on cables
- Pliable plastic molds are formed around splices
- Suitable for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig-ins
- Cable has a 7/8-in run and tap O.D.
- Accommodates 4/0 AWG stranded H or C-tap compression conductors
- Rated for 1 kV cables
- RoHS 2011/65/EU Compliant
|
|
|
|---|---|
|
Brand
|
Scotchcast™
|
|
Cable Type
|
Power Cable
|
|
Conductor Sizes
|
2/0 AWG, 4/0 AWG
|
|
H or C Tap Compression Maximum Conductor Sizes
|
4/0 AWG Stranded
|
|
Maximum Cable Outside Diameter (metric)
|
22.2 mm (run & tap)
|
|
Product Type
|
Resin Splice
|
|
RoHS 2011/65/EU Compliant
|
Yes
|
|
RoHS EU Comments
|
RoHS 2011/65/EU compliant without exemption
|
|
Shielding Type
|
Non-shielded
|
|
Splice Type
|
Resin
|
|
Split Bolt Maximum Conductor Sizes
|
2/0 AWG Stranded
|
|
Voltage
|
1 kV
|
